Product

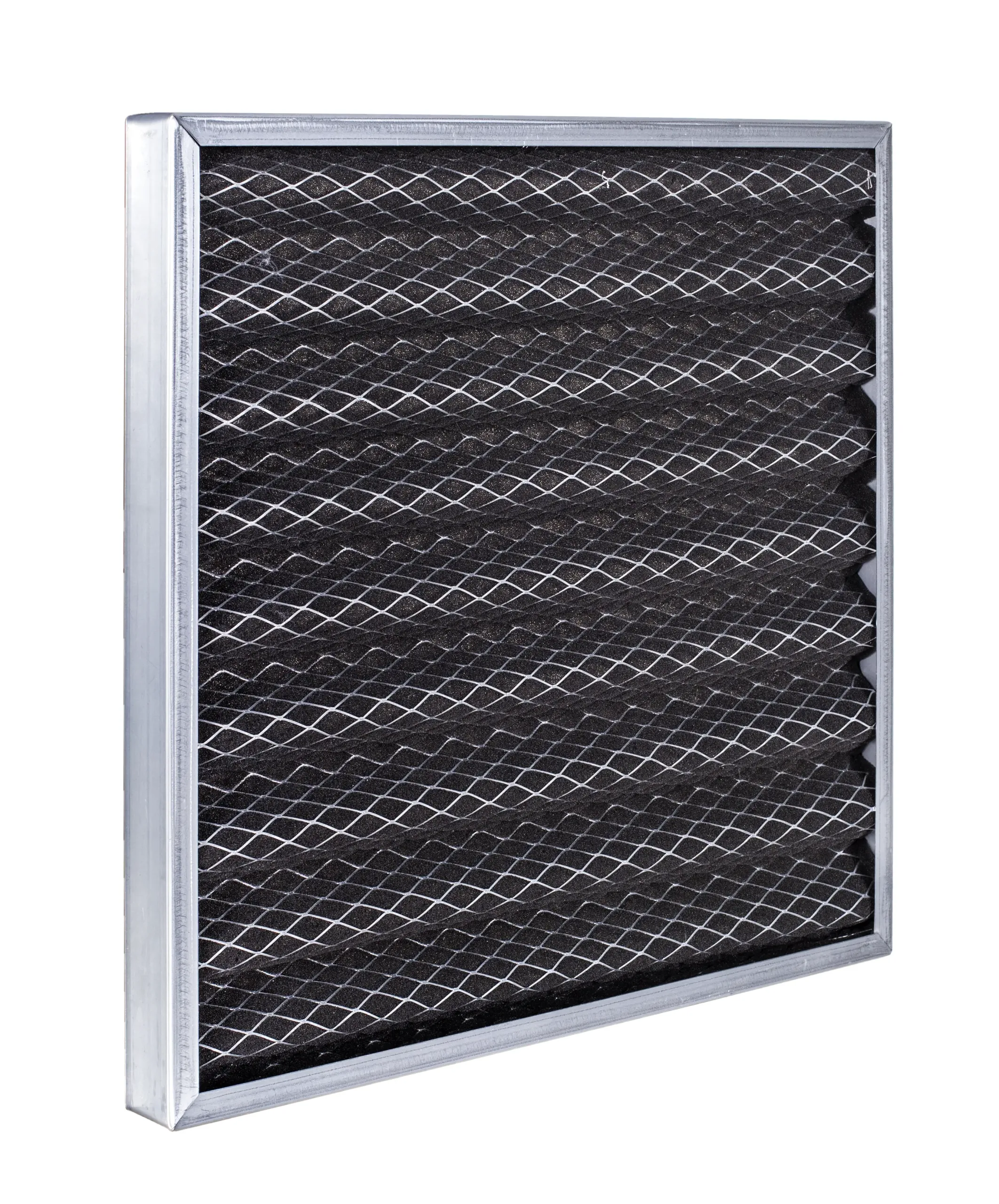

Z Type Pol

Z Type Pol

Description

Filter Media	Polyurethane (POL)
Frame Material	Galvanized Sheet Metal
Gasket	Optional (Polyurethane / EPDM)
Grid	Metal Mesh
Classification (EN779:2012)	G3-G4
Classification (ISO 16890)	ePMcoarse
Final Pressure Drop	250Pa
Max. Temperature	80°C
Max. Moisture	90%
Rated Face Velocity	2,70 m/s

Categories Castle Filters, Filter Roll / Media

Products Details:

Product Code	Class EN779	Class ISO16890	Width (m)	Height (mm)	Depth (mm)	Filtration Area	Nominal Air Flow (m3/h)	Initial Pressure Drop (± 10 % Pa)
CP-3-Z-POL-287-287-48	G3	ePMcoarse 45%	287	287	48	0,15	850	55
CP-3-Z-POL-287-592-48	G3	ePMcoarse 45%	287	592	48	0,30	1700	55
CP-3-Z-POL-490-592-48	G3	ePMcoarse 45%	490	592	50	0,50	2800	55
CP-3-Z-POL-592-592-48	G3	ePMcoarse 45%	592	592	48	0,60	3400	55
CP-3-Z-POL-287-287-96	G3	ePMcoarse 45%	287	287	96	0,25	850	40
CP-3-Z-POL-287-592-96	G3	ePMcoarse 45%	287	592	96	0,50	1700	40
CP-3-Z-POL-490-592-96	G3	ePMcoarse 45%	490	592	96	0,85	2800	40
CP-3-Z-POL-592-592-96	G3	ePMcoarse 45%	592	592	96	1,00	3400	40
CP-4-Z-POL-287-287-48	G4	ePMcoarse 65%	287	287	48	0,15	850	70
CP-4-Z-POL-287-592-48	G4	ePMcoarse 65%	287	592	48	0,30	1700	70
CP-4-Z-POL-490-592-48	G4	ePMcoarse 65%	490	592	48	0,50	2800	70
CP-4-Z-POL-592-592-48	G4	ePMcoarse 65%	592	592	48	0,60	3400	70
CP-4-Z-POL-287-287-96	G4	ePMcoarse 65%	287	287	96	0,25	850	55
CP-4-Z-POL-287-592-96	G4	ePMcoarse 65%	287	592	96	0,50	1700	55
CP-4-Z-POL-490-592-96	G4	ePMcoarse 65%	490	592	96	0,85	2800	55
CP-4-Z-POL-592-592-96	G4	ePMcoarse 65%	592	592	96	1,00	3400	55

Zigzag Polyurethane (PPI) Filters

SafeAir Filtre’s Zigzag Polyurethane (PPI) Filters are durable and flexible filtration solutions designed for high-performance air filtration. The unique zigzag design offers a large surface area with a high dust-holding capacity. Suitable for industrial and commercial settings, these filters provide high air permeability while reducing particle contamination and enhancing system efficiency.

Applications of Zigzag Polyurethane Filters

Zigzag Polyurethane Filters are widely used in office buildings, factories, air purifiers, and HVAC systems. While maintaining high airflow, these filters effectively capture dust, pollen, and other contaminants, improving indoor air quality and increasing energy efficiency.

Advantages

Expanded Surface Area: Zigzag design offers more surface area, providing a high dust-holding capacity.
High Durability: Made from polyurethane material, ensuring long-lasting use.
Easy to Clean: Washable filters reduce long-term maintenance costs.
High Airflow: Maintains high air permeability, supporting system efficiency and energy savings.

Maintenance and Durability

These filters provide long-lasting use with minimal maintenance requirements. The washable design enables repeated use, reducing operational costs. The polyurethane material withstands challenging conditions, making it suitable for industrial use.

Enhance Air Quality with SafeAir Zigzag Polyurethane (PPI) Filters!

Choose SafeAir Zigzag Polyurethane Filters to improve indoor air quality and support energy efficiency. For reliable and high-performance filtration solutions, contact SafeAir and experience the benefits of clean air in your workspace!
