Product

Z Type Cassette Pets

Z Type Cassette Pets

Description

Filter Media	Polyester(PET)
Frame Material:	Galvanized Sheet Metal
Gasket	Optional (Polyurethane / EPDM)
Grid	Metal Mesh
Classification (EN779:2012)	G3-G4
Classification (ISO16890)	ePMcoarse
Final Pressure Drop	250Pa
Max. Temperature	80°C
Max Moisture	90%
Rated Face Velocity	2,70 m/s

Categories Castle Filters, Filter Roll / Media

Products Details:

Product Code	Class EN779	Class ISO16890	Width (m)	Height (mm)	Depth (mm)	Filtration Area	Nominal Air Flow (m3/h)	Initial Pressure Drop (± 10 % Pa)
CP-3-Z-POL-287-287-48	G3	ePMcoarse 45%	287	287	48	0,15	850	45
CP-3-Z-POL-287-592-48	G3	ePMcoarse 45%	287	592	48	0,30	1700	45
CP-3-Z-POL-490-592-48	G3	ePMcoarse 45%	490	592	50	0,50	2800	45
CP-3-Z-POL-592-592-48	G3	ePMcoarse 45%	592	592	48	0,60	3400	45
CP-3-Z-POL-287-287-96	G3	ePMcoarse 45%	287	287	96	0,25	850	55
CP-3-Z-POL-287-592-96	G3	ePMcoarse 45%	287	592	96	0,50	1700	55
CP-3-Z-POL-490-592-96	G3	ePMcoarse 45%	490	592	96	0,85	2800	55
CP-3-Z-POL-592-592-96	G3	ePMcoarse 45%	592	592	96	1,00	3400	55
CP-4-Z-POL-287-287-48	G4	ePMcoarse 65%	287	287	48	0,15	850	70
CP-4-Z-POL-287-592-48	G4	ePMcoarse 65%	287	592	48	0,30	1700	70
CP-4-Z-POL-490-592-48	G4	ePMcoarse 65%	490	592	48	0,50	2800	70
CP-4-Z-POL-592-592-48	G4	ePMcoarse 65%	592	592	48	0,60	3400	70
CP-4-Z-POL-287-287-96	G4	ePMcoarse 65%	287	287	96	0,25	850	45
CP-4-Z-POL-287-592-96	G4	ePMcoarse 65%	287	592	96	0,50	1700	45
CP-4-Z-POL-490-592-96	G4	ePMcoarse 65%	490	592	96	0,85	2800	45
CP-4-Z-POL-592-592-96	G4	ePMcoarse 65%	592	592	96	1,00	3400	45

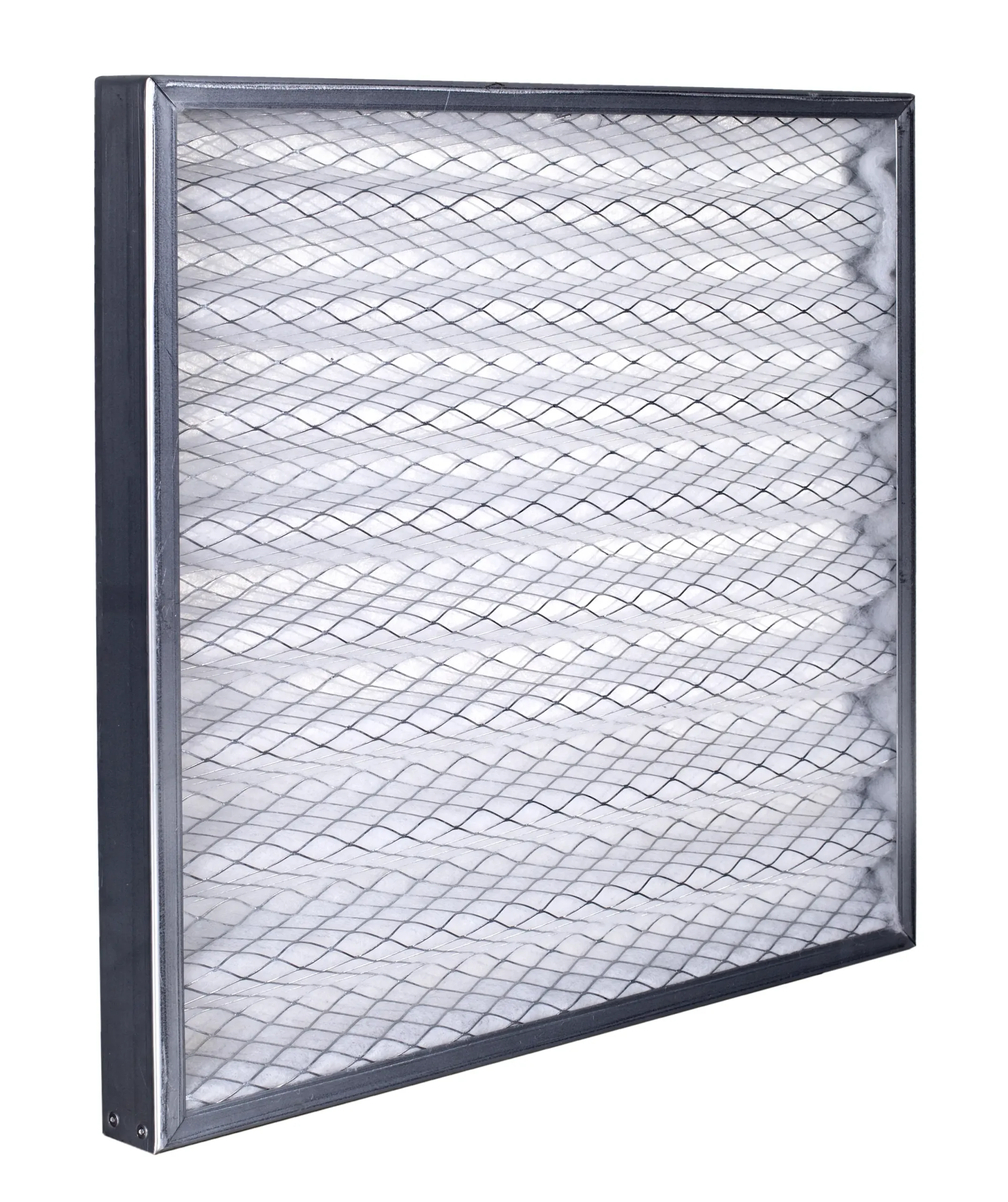

Zigzag Cassette Filters

SafeAir Filtre’s Zigzag Cassette Filters provide reliable air filtration for large spaces, offering high dust-holding capacity and long-lasting performance. The unique zigzag pleated design provides an expanded surface area, capturing particles effectively and improving ventilation system efficiency. Made from high-quality synthetic materials, Zigzag Cassette Filters are suitable for a variety of commercial and industrial applications.

Applications of Zigzag Cassette Filters

Zigzag Cassette Filters are ideal for environments where air quality is essential, such as office buildings, shopping malls, factories, and hospitals. With high dust retention, they protect both employee health and equipment lifespan, offering easy installation and maintenance.

Advantages of Zigzag Cassette Filters

High Efficiency: The zigzag design offers a larger surface area to capture more particles.
Energy Savings: Low-pressure drop filtration promotes energy savings.
Durability: Synthetic material ensures long-lasting use.
Easy Installation: Compatible with standard sizes, making installation simple.

Maintenance and Durability

SafeAir Zigzag Cassette Filters are easy to clean and reusable, offering extended use. With regular maintenance, these filters increase filtration efficiency and reduce operating costs.

Improve Air Quality with SafeAir Zigzag Cassette Filters!

For cleaner air and enhanced employee well-being, choose SafeAir Zigzag Cassette Filters. Contact SafeAir for reliable, long-lasting filtration solutions and ensure optimal air quality in your environment!
