Product

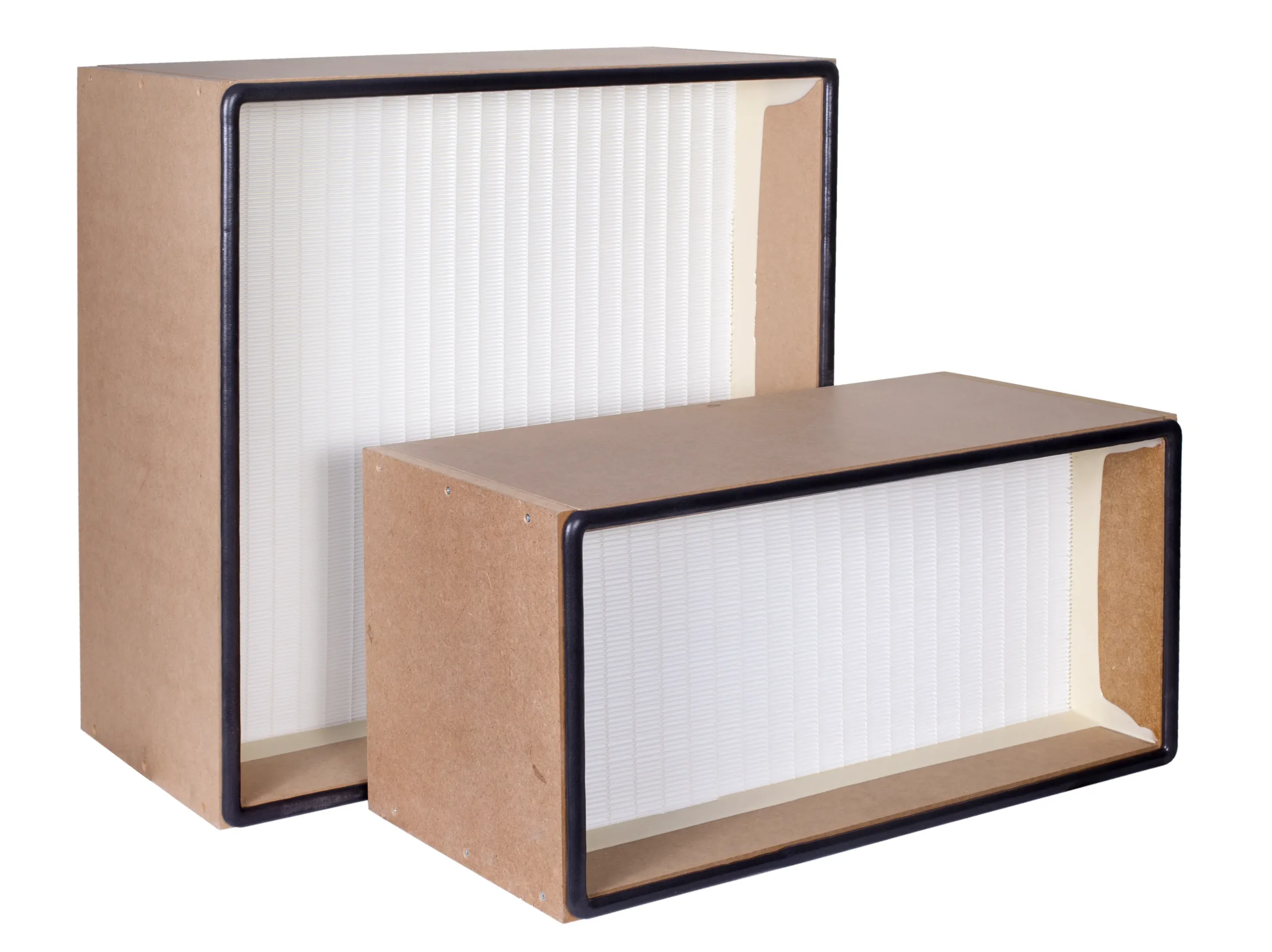

High Flow Filters-292 MM MDF Frame

High Flow Filters-292 MM MDF Frame

Description

Filter Media	Minipleat Micro Glass Fibre
Frame Material	MDF
Classification(EN1822)	E10 – U17
Gasket	Cont. Round Pu / Flat Epdm
Seperator	Hotmelt
Sealant	2K Polyurethane
Final Pressure Drop	600 Pa
Max.Temperature	80 °C
Max.Moisture	90%

Categories High-Capacity Hepa Filters, Sensitive Filters

Products Details:

Product Code	Class EN1822	Width (m)	Height (mm)	Depth (mm)	Fitration Area (m2)	Nominal Air Flow (m3/h)	Initial Pressure Drop (± 10% Pa)
HFF-10-M-305-305-X-DP	E10	305	305	292	5,25	500	210
HFF-10-M-305-610-X-DP	E10	305	610	292	10,50	1000	210
HFF-10-M-610-610-X-DP	E10	610	610	292	21,00	2000	210
HFF-10-M-305-305-X-DP	H13	305	305	292	5,25	500	250
HFF-13-M-305-610-X-DP	H13	305	610	292	10,50	1000	250
HFF-13-M-610-610-X-DP	H13	610	610	292	21,00	2000	250
HFF-14-M-305-305-X-DP	H14	305	305	292	5,25	500	270
HFF-14-M-305-610-X-DP	H14	305	610	292	10,50	1000	270
HFF-14-M-610-610-X-DP	H14	610	610	292	21,00	2000	270
HFF-10-M-305-305-XL-DP	E10	305	305	292	5,25	500	210
HFF-10-M-305-610-XL-DP	E10	305	610	292	10,50	1000	210
HFF-10-M-610-610-XL-DP	E10	610	610	292	21,00	2000	210
HFF-10-M-305-305-XL-DP	H13	305	305	292	5,25	500	250
HFF-13-M-305-610-XL-DP	H13	305	610	292	10,50	1000	250
HFF-13-M-610-610-XL-DP	H13	610	610	292	21,00	2000	250
HFF-14-M-305-305-XL-DP	H14	305	305	292	5,25	500	270
HFF-14-M-305-610-XL-DP	H14	305	610	292	10,50	1000	270
HFF-14-M-610-610-XL-DP	H14	610	610	292	21,00	2000	270

High-Capacity 292mm MDF Frame HEPA Filters

Safe Air High-Capacity 292mm MDF Frame HEPA Filters offer advanced filtration with extended dust-holding capacity and durability. The MDF frame enhances stability, while the high-capacity design is ideal for HVAC systems and environments demanding superior air quality, such as cleanrooms, hospitals, labs, and food or pharmaceutical facilities.

Applications of High-Capacity 292mm MDF Frame HEPA Filters

Safe Air High-Capacity HEPA Filters are suitable for high airflow environments, providing efficient air purification across cleanrooms, pharmaceutical and food production areas, hospitals, and microelectronics sectors.

Advantages

Large Dust-Holding Capacity: Extended use with fewer filter changes.
High Filtration Efficiency: Captures ultra-fine particles for superior air quality.
Sturdy MDF Frame: 292mm thickness offers resistance to deformation.
Energy Efficient: Low-pressure drop minimizes energy costs.
Easy Installation: Compatible with various HVAC applications.

Protect Your Air Quality with Safe Air High-Capacity 292mm MDF Frame HEPA Filters!

Choose Safe Air for high-capacity HEPA filters to ensure clean, healthy air in sensitive environments.
