Product
Description
| Filter Media | Minipleat Micro Glass Fibre |
| Frame Material | Galvanized Steel |
| Classification(EN1822) | E10 – U17 |
| Gasket | Cont. Round Pu / Flat Epdm |
| Seperator | Hotmelt |
| Sealant | 2K Polyurethane |
| Final Pressure Drop | 600 Pa |
| Max.Temperature | 80 °C |
| Max.Moisture | 90% |
| Product Code | Class
EN1822 |
Width
(m) |
Height
(mm) |
Depth
(mm) |
Filtration Area
(m2) |
Nominal Air Flow
(m3/h) |
Initial Pressure Drop
(± 10% Pa) |
| HFF-10-G-305-305-X-DP-DG | E10 | 305 | 305 | 292 | 5,25 | 500 | 210 |
| HFF-10-G-305-610-X-DP-DG | E10 | 305 | 610 | 292 | 10,50 | 1000 | 210 |
| HFF-10-G-610-610-X-DP-DG | E10 | 610 | 610 | 292 | 21,00 | 2000 | 210 |
| HFF-10-G-305-305-X-DP-DG | H13 | 305 | 305 | 292 | 5,25 | 500 | 250 |
| HFF-13-G-305-610-X-DP-DG | H13 | 305 | 610 | 292 | 10,50 | 1000 | 250 |
| HFF-13-G-610-610-X-DP-DG | H13 | 610 | 610 | 292 | 21,00 | 2000 | 250 |
| HFF-14-G-305-305-X-DP-DG | H14 | 305 | 305 | 292 | 5,25 | 500 | 270 |
| HFF-14-G-305-610-X-DP-DG | H14 | 305 | 610 | 292 | 10,50 | 1000 | 270 |
| HFF-14-G-610-610-X-DP-DG | H14 | 610 | 610 | 292 | 21,00 | 2000 | 270 |
| HFF-10-G-305-305-XL-DP-DG | E10 | 305 | 305 | 292 | 5,25 | 500 | 210 |
| HFF-10-G-305-610-XL-DP-DG | E10 | 305 | 610 | 292 | 10,50 | 1000 | 210 |
| HFF-10-G-610-610-XL-DP-DG | E10 | 610 | 610 | 292 | 21,00 | 2000 | 210 |
| HFF-10-G-305-305-XL-DP-DG | H13 | 305 | 305 | 292 | 5,25 | 500 | 250 |
| HFF-13-G-305-610-XL-DP-DG | H13 | 305 | 610 | 292 | 10,50 | 1000 | 250 |
| HFF-13-G-610-610-XL-DP-DG | H13 | 610 | 610 | 292 | 21,00 | 2000 | 250 |
| HFF-14-G-305-305-XL-DP-DG | H14 | 305 | 305 | 292 | 5,25 | 500 | 270 |
| HFF-14-G-305-610-XL-DP-DG | H14 | 305 | 610 | 292 | 10,50 | 1000 | 270 |
| HFF-14-G-610-610-XL-DP-DG | H14 | 610 | 610 | 292 | 21,00 | 2000 | 270 |

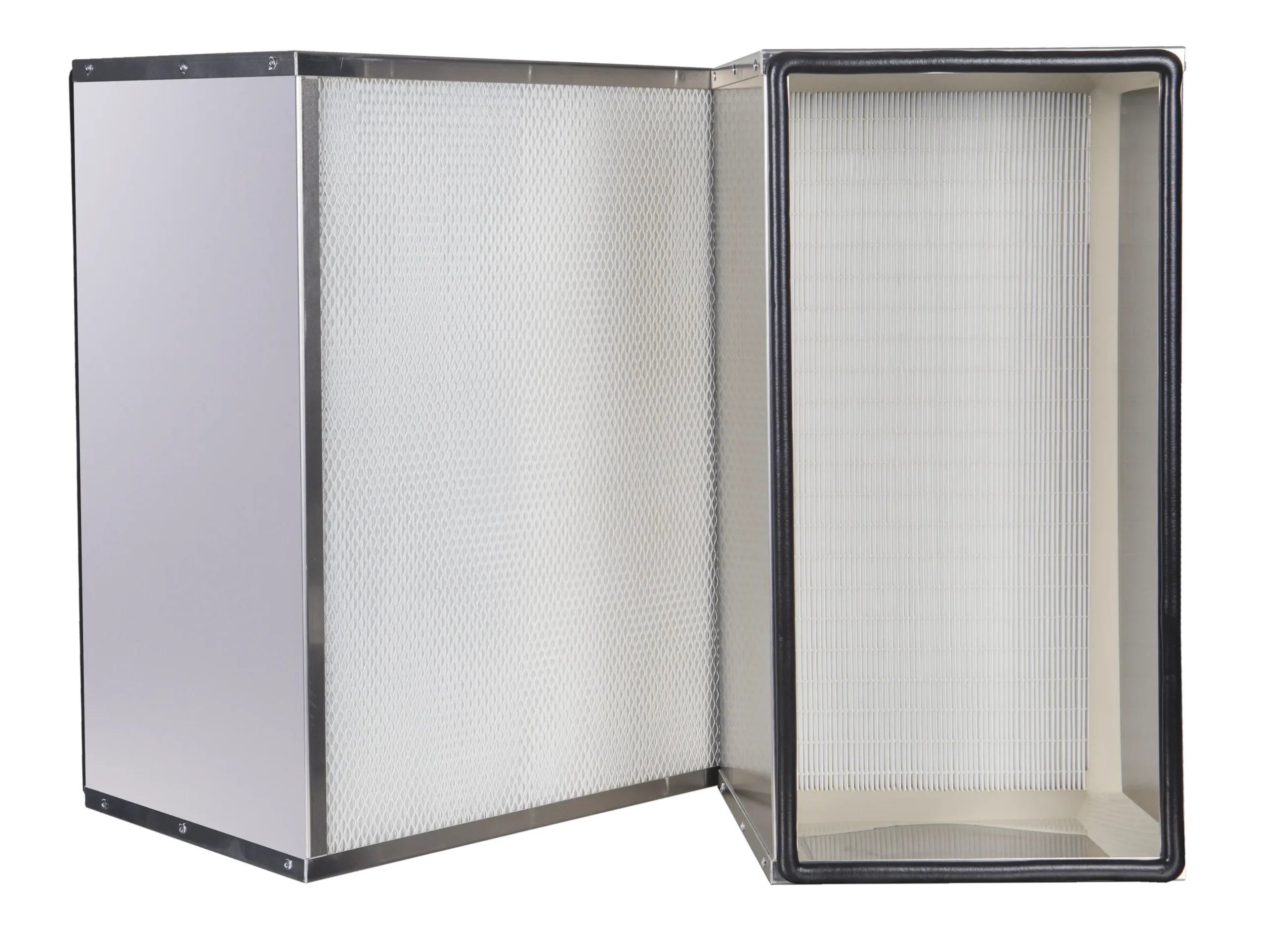

Safe Air High-Capacity 292mm Galvanized Frame HEPA Filters offer long-lasting and reliable air purification for environments requiring exceptional air quality. The galvanized frame resists rust and deformation, even with heavy use, making it ideal for sensitive spaces such as hospitals, laboratories, cleanrooms, and pharmaceutical production facilities. The large surface area captures up to 99.97% of fine particles, helping maintain air purity and hygiene standards.
Safe Air High-Capacity 292mm Galvanized Frame HEPA Filters perform effectively in areas requiring high airflow and strict air quality, including cleanrooms, hospitals, microelectronics production, and the food and pharmaceutical industries. With a high particle retention capacity, these filters effectively capture dust, pollen, and microscopic contaminants, ensuring a safe indoor environment.
Safe Air High-Capacity 292mm Galvanized Frame HEPA Filters offer numerous benefits:
Built with a sturdy galvanized frame, SafeAir 292mm High-Capacity HEPA Filters provide long-term reliability and require minimal maintenance. The robust construction ensures these filters can handle heavy-duty use while maintaining efficiency, reducing replacement frequency. Routine cleaning and care help extend the filter’s life, delivering consistent performance in maintaining air quality.
Ensure Air Quality with Safe Air High-Capacity 292mm Galvanized Frame HEPA Filters!
Safe Air’s galvanized frame high-capacity HEPA filters are ideal for environments where air purity is essential. These durable, energy-efficient, and easy-to-install filters contribute to a safer, healthier workspace. Contact Safe Air today for advanced air filtration solutions that deliver superior air quality!
