Product

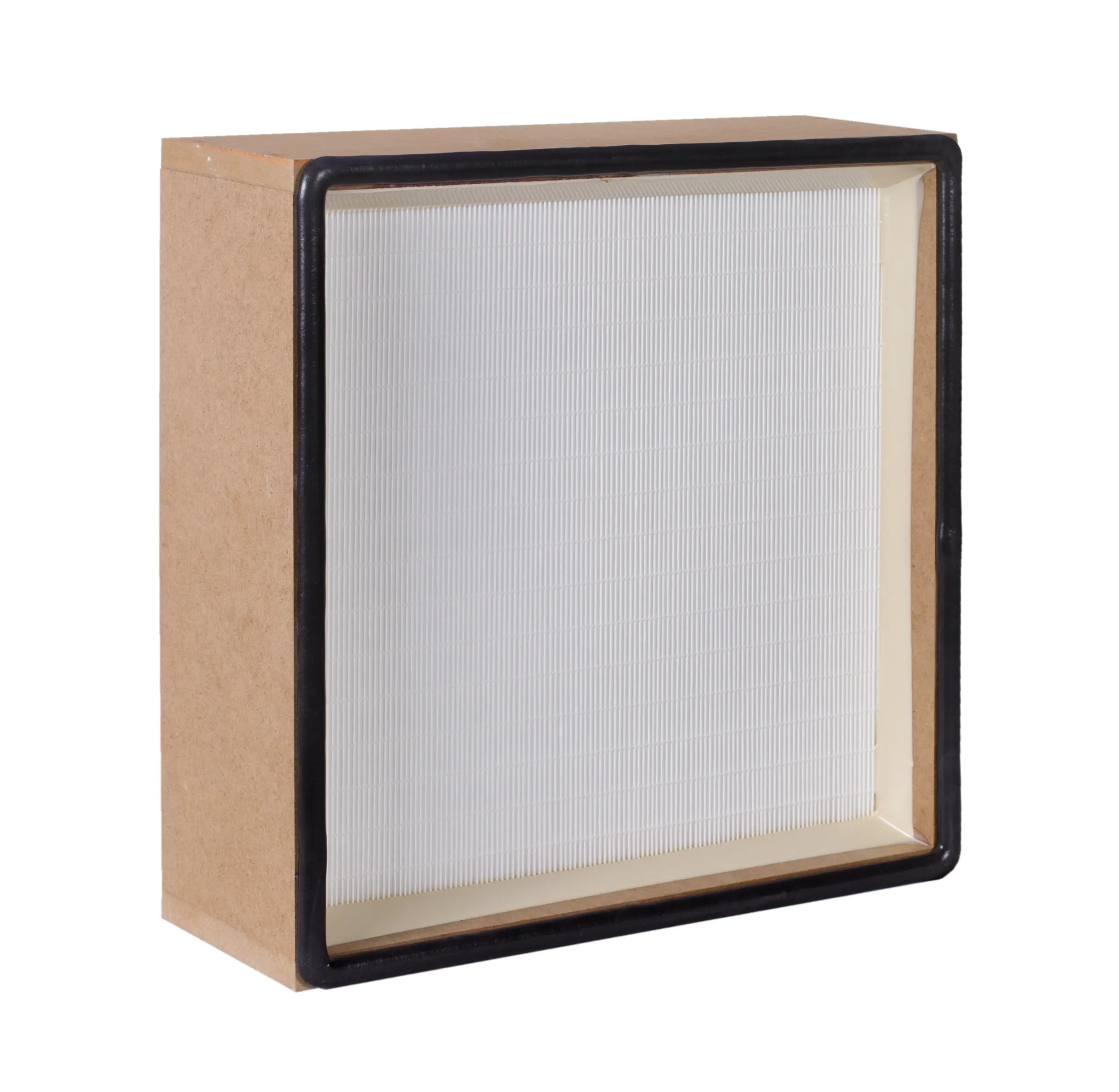

Hepa Termınal Filters-78 MM MDF Frame

Hepa Termınal Filters-78 MM MDF Frame

Hepa Termınal Filters-78 MM MDF Frame

Description

Filter Media Minipleat Micro Glass Fibre
Frame Materia MDF
Classification (EN1822) E10 – U17
Gasket Cont. Round PU / Flat Epdm
Seperator Hotmelt
Sealant 2K Polyurethane
Final Pressure Drop 600 Pa
Max. Temperature 80 °C
Max. Moisture  90%
Rated Face Velocity 0,45 m/s
Categories ,
Request A Quote

Products Details:

Product Code Class

EN1822

 Width

(m)

 Height

(mm)

 Depth

(mm)

 Filtration Area

AREA (m2)

 Nominal Air Flow

(m3/h)

 Initial Pressure Drop

(± 10% Pa)
HTF-10-M-203-203-78-S-DP F7 ePM2.5 65% 287 592 360 3 1,30
HTF-10-M-305-305-78-S-DP F7 ePM2.5 65% 490 592 360 5 2,10
HTF-10-M-305-610-78-S-DP F7 ePM2.5 65% 592 592 360 6 2,60
HTF-10-M-457-457-78-S-DP F7 ePM2.5 65% 287 592 360 4 1,70
HTF-10-M-535-535-78-S-DP F7 ePM2.5 65% 490 592 360 6 2,50
HTF-10-M-575-575-78-S-DP F7 ePM2.5 65% 592 592 360 8 3,40
HTF-10-M-610-610-78-S-DP F7 ePM2.5 65% 287 592 535 3 1,90
HTF-10-M-610-762-78-S-DP F7 ePM2.5 65% 490 592 535 5 2,20
HTF-10-M-610-915-78-S-DP F7 ePM2.5 65% 592 592 535 6 3,80
HTF-10-M-610-1220-78-S-DP F7 ePM2.5 65% 287 592 535 4 2,50
HTF-10-M-610-1830-78-S-DP F7 ePM2.5 65% 490 592 535 6 3,80
HTF-13-M-203-203-78-S-DP F7 ePM2.5 65% 592 592 535 8 5,00
HTF-13-M-305-305-78-S-DP F7 ePM2.5 65% 287 592 635 3 2,30
HTF-13-M-305-610-78-S-DP F7 ePM2.5 65% 490 592 635 5 3,80
HTF-13-M-457-457-78-S-DP F7 ePM2.5 65% 592 592 635 6 4,60
HTF-13-M-535-535-78-S-DP F7 ePM2.5 65% 287 592 635 4 3,00
HTF-13-M-575-575-78-S-DP F7 ePM2.5 65% 490 592 635 6 4,50
HTF-13-M-610-610-78-S-DP F7 ePM2.5 65% 592 592 635 8 6,00
HTF-13-M-610-762-78-S-DP F8 ePM1 75% 287 592 360 3 1,30
HTF-13-M-610-915-78-S-DP F8 ePM1 75% 490 592 360 5 2,10
HTF-13-M-610-1220-78-S-DP F8 ePM1 75% 592 592 360 6 2,60
HTF-13-M-610-1830-78-S-DP F8 ePM1 75% 287 592 360 4 1,70
HTF-14-M-203-203-78-S-DP F8 ePM1 75% 490 592 360 6 2,50
HTF-14-M-305-305-78-S-DP F8 ePM1 75% 592 592 360 8 3,40
HTF-14-M-305-610-78-S-DP F8 ePM1 75% 287 592 535 3 1,90
HTF-14-M-457-457-78-S-DP F8 ePM1 75% 490 592 535 5 3,20
HTF-14-M-535-535-78-S-DP F8 ePM1 75% 592 592 535 6 3,80
HTF-14-M-575-575-78-S-DP F8 ePM1 75% 287 592 535 4 2,50
HTF-14-M-610-610-78-S-DP F8 ePM1 75% 490 592 535 6 3,80
HTF-14-M-610-762-78-S-DP F8 ePM1 75% 592 592 535 8 5,00
HTF-14-M-610-915-78-S-DP F8 ePM1 75% 287 592 635 3 2,30
HTF-14-M-610-1220-78-S-DP F8 ePM1 75% 490 592 635 5 3,80
HTF-14-M-610-1830-78-S-DP F8 ePM1 75% 592 592 635 6 4,60

78mm MDF Frame HEPA Filters

Safe Air 78mm MDF Frame HEPA Filters offer durable and efficient filtration, capturing ultra-fine particles to maintain superior air quality. The MDF frame provides stability and reliability, ideal for sensitive applications. Designed for use in cleanrooms, laboratories, hospitals, pharmaceutical, and food production facilities, these filters meet stringent hygiene requirements.

Applications of 78mm MDF Frame HEPA Filters

Safe Air 78mm MDF Frame HEPA Filters are perfect for environments requiring precise air quality, such as hospitals, labs, microelectronics manufacturing, and pharmaceutical facilities. The robust MDF frame enhances particle retention, ensuring reliable air purification.

Advantages

  • High Filtration Efficiency: Effectively captures ultra-fine particles, providing superior air quality.
  • Sturdy MDF Frame: 78mm thickness enhances frame stability and durability.
  • Energy Efficient: Low pressure drop saves energy.
  • Easy Installation: MDF frame allows seamless integration with various systems.

Enhance Your Air Quality with Safe Air 78mm MDF Frame HEPA Filters!

For reliable filtration, choose Saf eAir 78mm MDF Frame HEPA Filters to ensure clean, hygienic air quality in sensitive environments.
