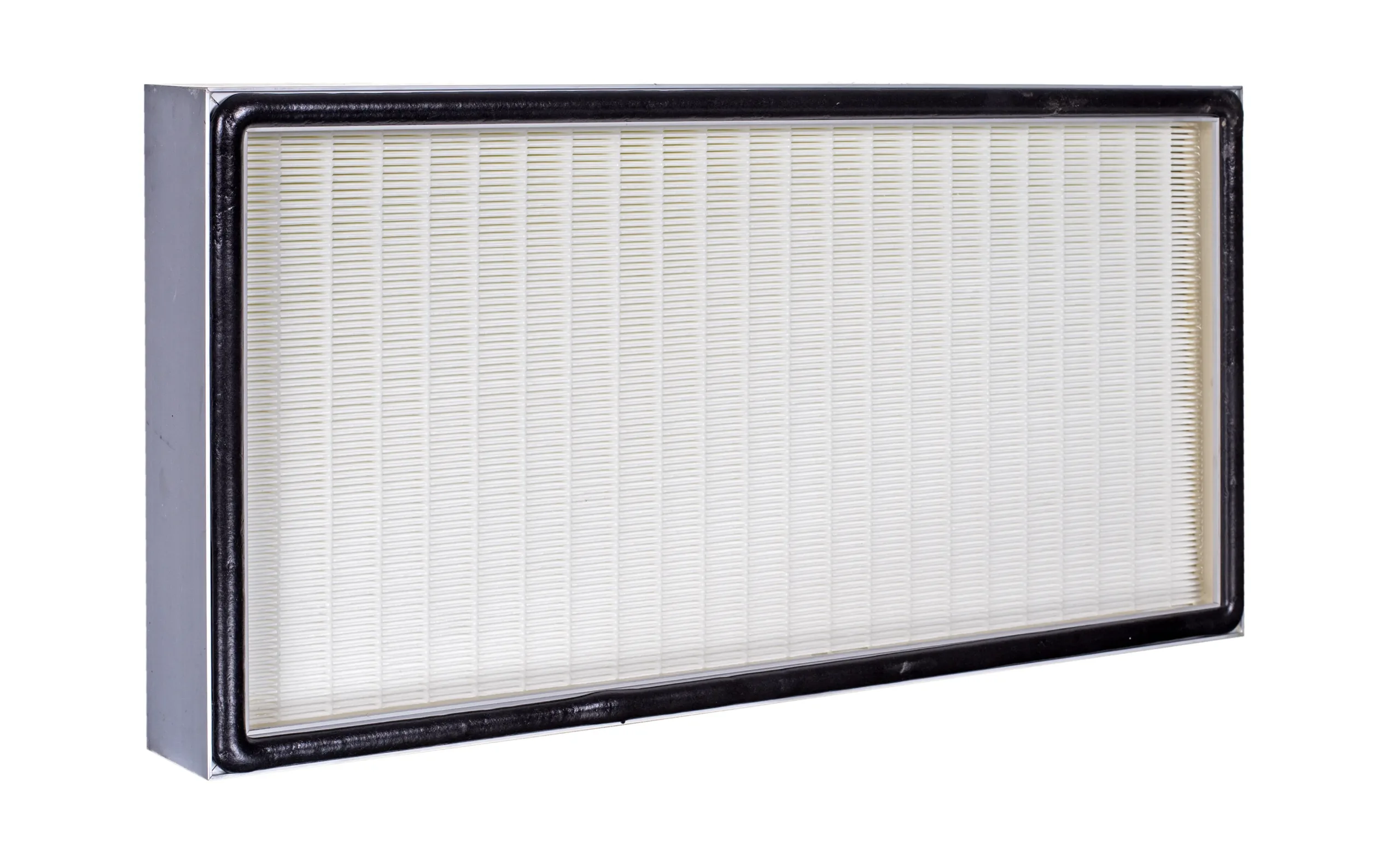

Hepa Terminal Filters-69 MM Aluminium Frame

Hepa Terminal Filters-69 MM Aluminium Frame

Description

Filter Media  Minipleat Micro Glass Fibre
Frame Material Aluminium Steel
Classification (EN1822) E10 – U17
Gasket Cont. Round Pu / Flat Epdm
Seperator Hotmelt
Sealant 2K Polyurethane
Final Pressure Drop 600 Pa
Max. Temperature:  80 °C
Max. Moisture 90%
Rated Face Velocity 0,45 m/s

Products Details:

Product Code Class

EN1822

Width

(m)

Height

(mm)

Depth

(mm)

Filtration Area

(m2)

Nominal Air Flow

(m3/h)

Initial Pressure Drop

(± 10% Pa)

HTF-10-A-203-203-69-S-DP-DG E10 203 203 78 1,10 75 65
HTF-10-A-305-305-69-S-DP-DG E10 305 305 78 2,45 150 65
HTF-10-A-305-610-69-S-DP-DG E10 305 610 78 4,90 300 65
HTF-10-A-457-457-69-S-DP-DG E10 457 457 78 5,50 340 65
HTF-10-A-535-535-69-S-DP-DG E10 535 535 78 7,55 465 65
HTF-10-A-575-575-69-S-DP-DG E10 575 575 78 8,70 535 65
HTF-10-A-610-610-69-S-DP-DG E10 610 610 78 9,80 600 65
HTF-10-A-610-762-69-S-DP-DG E10 610 762 78 12,25 750 65
HTF-10-A-610-915-69-S-DP-DG E10 610 915 78 14,70 900 65
HTF-10-A-610-1220-69-S-DP-DG E10 610 1220 78 19,60 1200 65
HTF-10-A-610-1830-69-S-DP-DG E10 610 1830 78 29,40 1800 65
HTF-13-A-203-203-69-S-DP-DG H13 203 203 78 1,10 75 100
HTF-13-A-305-305-69-S-DP-DG H13 305 305 78 2,45 150 100
HTF-13-A-305-610-69-S-DP-DG H13 305 610 78 4,90 300 100
HTF-13-A-457-457-69-S-DP-DG H13 457 457 78 5,50 340 100
HTF-13-A-535-535-69-S-DP-DG H13 535 535 78 7,55 465 100
HTF-13-A-575-575-69-S-DP-DG H13 575 610 78 8,70 535 100
HTF-13-A-610-610-69-S-DP-DG H13 610 762 78 9,80 600 100
HTF-13-A-610-762-69-S-DP-DG H13 610 915 78 12,25 750 100
HTF-13-A-610-915-69-S-DP-DG H13 610 1220 78 14,70 900 100
HTF-13-A-610-1220-69-S-DP-DG H13 610 1830 78 19,60 1200 100
HTF-13-A-610-1830-69-S-DP-DG H13 610 203 78 29,40 1800 100
HTF-14-A-203-203-69-S-DP-DG H14 203 305 78 1,10 75 125
HTF-14-A-305-305-69-S-DP-DG H14 305 610 78 2,45 150 125
HTF-14-A-305-610-69-S-DP-DG H14 305 457 78 4,90 300 125
HTF-14-A-457-457-69-S-DP-DG H14 457 535 78 5,50 340 125
HTF-14-A-535-535-69-S-DP-DG H14 535 610 78 7,55 465 125
HTF-14-A-575-575-69-S-DP-DG H14 575 762 78 8,70 535 125
HTF-14-A-610-610-69-S-DP-DG H14 610 535 78 9,80 600 125
HTF-14-A-610-762-69-S-DP-DG H14 610 915 78 12,25 750 125
HTF-14-A-610-915-69-S-DP-DG H14 610 287 78 14,70 900 125
HTF-14-A-610-1220-69-S-DP-DG H14 610 1220 78 19,60 1200 125
HTF-14-A-610-1830-69-S-DP-DG H14 610 1830 78 29,40 1800 125

69mm Aluminum Frame HEPA Filters

Safe Air 69mm Aluminum Frame HEPA Filters offer advanced filtration solutions designed to improve air quality by effectively capturing fine particles. With a lightweight yet durable aluminum frame, these filters provide long-lasting use without the risk of rust or deformation. The aluminum frame design makes these filters ideal for cleanrooms, hospitals, laboratories, and pharmaceutical production facilities, where air quality is a priority. Additionally, the 69mm aluminum frame ensures easy installation and maintenance.

Applications of 69mm Aluminum Frame HEPA Filters

Safe Air 69mm Aluminum Frame HEPA Filters are well-suited for environments requiring high air quality control, including hospitals, pharmaceutical production facilities, laboratories, and microelectronics manufacturing spaces. These filters maintain exceptional air purity by filtering out 99.97% of airborne particles, ensuring a safe indoor environment. Their high dust-holding capacity allows them to maintain airflow without compromising filtration performance.

Advantages

Safe Air 69mm Aluminum Frame HEPA Filters provide several benefits, offering high-quality performance for users:

  • High Filtration Efficiency: As HEPA-grade filters, they capture fine particles efficiently, achieving superior air purity, particularly effective at trapping particles like PM 2.5.
  • Durable Aluminum Frame: The 69mm thick aluminum frame resists rust and deformation, providing reliable, long-lasting performance.
  • Energy Efficient: Operating with a low-pressure drop, they help minimize energy consumption, reducing operational costs.
  • Easy Installation: Lightweight aluminum frame enables straightforward installation, compatible with various HVAC systems and ventilation applications.
  • Long Lifespan: Due to their durable construction, these filters require infrequent replacement, lowering maintenance costs over time.

Maintenance and Durability

Constructed from high-quality materials, Safe Air 69mm Aluminum Frame HEPA Filters are built for longevity, retaining filtration performance over extended periods. Regular maintenance ensures these filters continue to deliver top-level performance without frequent replacement, saving both time and costs. Their easy-to-clean design simplifies upkeep, promoting a safer work environment and consistently maintaining clean indoor air.

Enhance Your Air Quality with Safe Air 69mm Aluminum Frame HEPA Filters!

For reliable filtration in environments with strict hygiene requirements, Safe Air 69mm Aluminum Frame HEPA Filters are an ideal choice. Experience superior air quality with durable, energy-efficient, and easy-to-install filters designed to meet your needs. Contact Safe Air today to learn more about our filtration solutions and to improve your workplace air quality.
