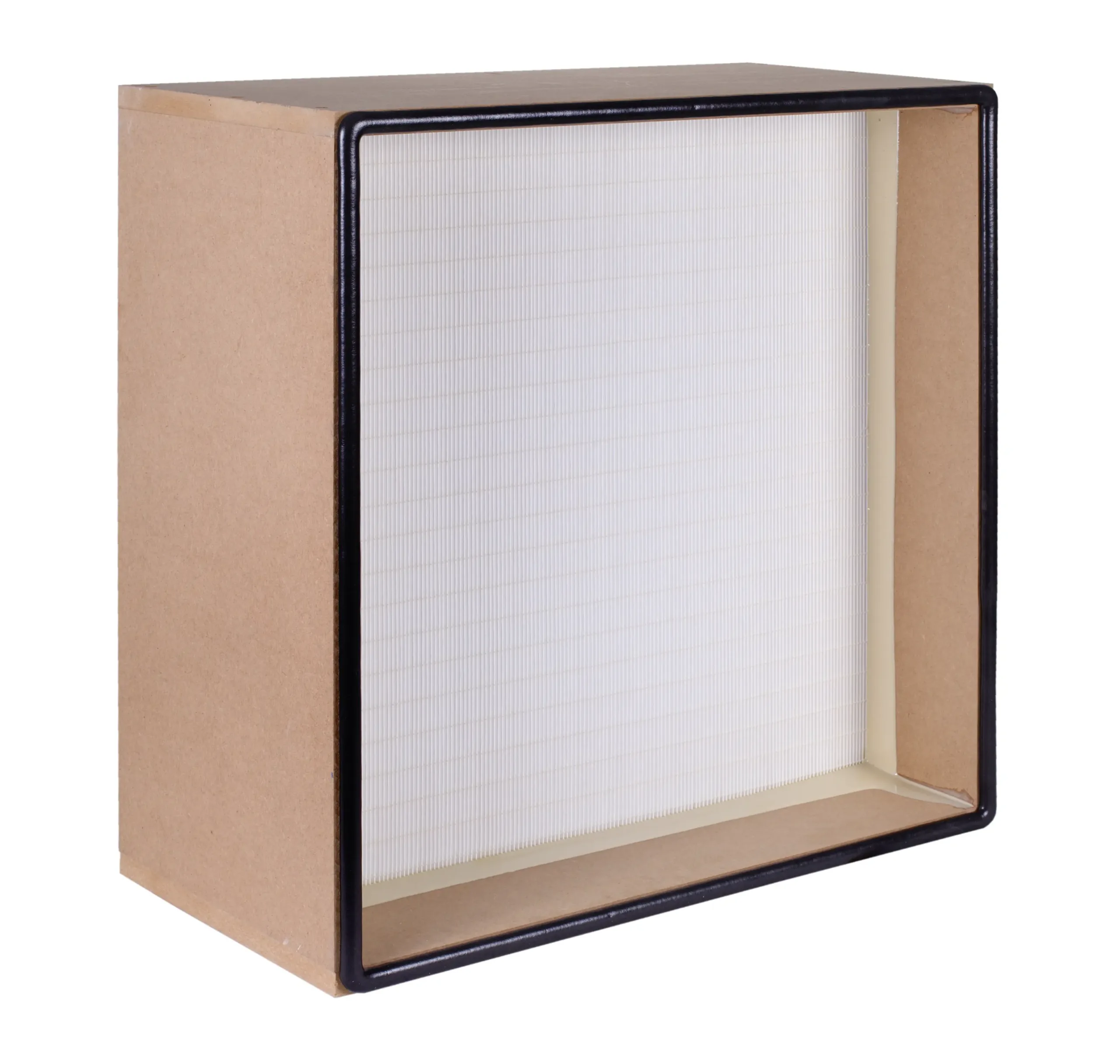

Hepa Terminal Filters-149 MM MDF Frame

Hepa Terminal Filters-149 MM MDF Frame

Description

Filter Media	Minipleat Micro Glass Fibre
Frame Material	MDF
Classification (EN1822):	E10 – U17
Gasket	Cont. Round PU / Flat Epdm
Seperator:	Hotmelt
Sealant	2K Polyurethane
Final Pressure Drop	600 Pa
Max. Temperature	80 °C
Max. Moisture	90%

Categories Hepa Filters, Sensitive Filters

Products Details:

Product Code	Class EN1822	Width (m)	Height (mm)	Depth (mm)	Filtration Area (m2) 48 / 72 / 96 mm (S) ( M) ( L )	Nominal Air Flow (m3/h)	Initial Pressure Drop (± 10% Pa)
HTF-10-M-203-203-149-X-DP	E10	203	203	149	1,10 / 1,65/ 2,20	75	80/ 50 / 40
HTF-10-M-305-305-149-X-DP	E10	305	305	149	2,45/ 3,68 / 4,90	150	80/ 50 / 40
HTF-10-M-305-610-149-X-DP	E10	305	610	149	4,90 / 7,35 / 9,80	300	80/ 50 / 40
HTF-10-M-457-457-149-X-DP	E10	457	457	149	5,50/ 8,25 / 11,00	340	80/ 50 / 40
HTF-10-M-535-535-149-X-DP	E10	535	535	149	7,55 / 11,30 / 15,08	465	80/ 50 / 40
HTF-10-M-575-575-149-X-DP	E10	575	575	149	8,70 / 13,05/ 17,40	535	80/ 50 / 40
HTF-10-M-610-610-149-X-DP	E10	610	610	149	9,80/ 14,70 / 19,60	600	80/ 50 / 40
HTF-10-M-610-762-149-X-DP	E10	610	762	149	12,25 / 18,38 / 24,50	750	80/ 50 / 40
HTF-10-M-610-915-149-X-DP	E10	610	915	149	14,70 / 22,05/29,40	900	80/ 50 / 40
HTF-10-M-610-1220-149-X-DP	E10	610	1220	149	19,60 / 29,40 / 39,20	1200	80/ 50 / 40
HTF-10-M-610-1830-149-X-DP	E10	610	1830	149	29,40/ 44,10 / 58,80	1800	80/ 50 / 40
HTF-13-M-203-203-149-X-DP	H13	203	203	149	1,10 / 1,65/ 2,20	75	100/ 70 / 60
HTF-13-M-305-305-149-X-DP	H13	305	305	149	2,45/ 3,68 / 4,90	150	100/ 70 / 60
HTF-13-M-305-610-149-X-DP	H13	305	610	149	4,90 / 7,35 / 9,80	300	100/ 70 / 60
HTF-13-M-457-457-149-X-DP	H13	457	457	149	5,50/ 8,25 / 11,00	340	100/ 70 / 60
HTF-13-M-535-535-149-X-DP	H13	535	535	149	7,55 / 11,30 / 15,08	465	100/ 70 / 60
HTF-13-M-575-575-149-X-DP	H13	575	610	149	8,70 / 13,05/ 17,40	535	100/ 70 / 60
HTF-13-M-610-610-149-X-DP	H13	610	762	149	9,80/ 14,70 / 19,60	600	100/ 70 / 60
HTF-13-M-610-762-149-X-DP	H13	610	915	149	12,25 / 18,38 / 24,50	750	100/ 70 / 60
HTF-13-M-610-915-149-X-DP	H13	610	1220	149	14,70 / 22,05/29,40	900	100/ 70 / 60
HTF-13-M-610-1220-149-X-DP	H13	610	1830	149	19,60 / 29,40 / 39,20	1200	100/ 70 / 60
HTF-13-M-610-1830-149-X-DP	H13	610	203	149	29,40/ 44,10 / 58,80	1800	100/ 70 / 60
HTF-14-M-203-203-149-X-DP	H14	203	305	149	1,10 / 1,65/ 2,20	75	125 / 75 / 65
HTF-14-M-305-305-149-X-DP	H14	305	610	149	2,45/ 3,68 / 4,90	150	125 / 75 / 65
HTF-14-M-305-610-149-X-DP	H14	305	457	149	4,90 / 7,35 / 9,80	300	125 / 75 / 65
HTF-14-M-457-457-149-X-DP	H14	457	535	149	5,50/ 8,25 / 11,00	340	125 / 75 / 65
HTF-14-M-535-535-149-X-DP	H14	535	610	149	7,55 / 11,30 / 15,08	465	125 / 75 / 65
HTF-14-M-575-575-149-X-DP	H14	575	762	149	8,70 / 13,05/ 17,40	535	125 / 75 / 65
HTF-14-M-610-610-149-X-DP	H14	610	535	149	9,80/ 14,70 / 19,60	600	125 / 75 / 65
HTF-14-M-610-762-149-X-DP	H14	610	915	149	12,25 / 18,38 / 24,50	750	125 / 75 / 65
HTF-14-M-610-915-149-X-DP	H14	610	287	149	14,70 / 22,05/29,40	900	125 / 75 / 65
HTF-14-M-610-1220-149-X-DP	H14	610	1220	149	19,60 / 29,40 / 39,20	1200	125 / 75 / 65
HTF-14-M-610-1830-149-X-DP	H14	610	1830	149	29,40/ 44,10 / 58,80	1800	125 / 75 / 65

149mm MDF Frame HEPA Filters

Safe Air 149mm MDF Frame HEPA Filters offer reliable solutions for environments requiring precise air filtration. The sturdy 149mm MDF frame enhances durability, making these filters ideal for long-term use in high-hygiene areas like cleanrooms, hospitals, labs, and pharmaceutical facilities.

Applications of 149mm MDF Frame HEPA Filters

Safe Air 149mm MDF Frame HEPA Filters are perfect for spaces needing superior air quality, such as hospitals, pharmaceutical production, and other sensitive sectors. They efficiently capture fine particles to maintain a safe indoor environment.

Advantages

High Filtration Capacity: Captures ultra-fine particles for superior air quality.
Sturdy MDF Frame: 149mm thickness offers extra durability against deformation.
Energy Efficient: Low pressure drop supports energy savings.
Easy Installation: Compatible with standard HVAC systems and various other setups.

Ensure Air Quality with SafeAir 149mm MDF Frame HEPA Filters!

For trustworthy filtration in critical environments, choose Safe Air 149mm MDF Frame HEPA Filters.
