Product
Description
| Filter Media | Activated Carbon Combined with Syntethic Media |
| Frame Materia | Plastic |
| Header Thickness | 25mm |
| Classification (EN779: 2012) | AC |
| Classification (ISO 16890) | ePMcoarse 2,5 |
| Gasket | Optional (Polyurethane / Epdm) |
| Seperator | Hotmelt |
| Sealant | 2K Polyurethane |
| Final Pressure Drop | 450 Pa |
| Max. Temperature | 80 °C |
| Max. Moisture | 90% |
| Product Code | Class
799 |
Class
16890 |
Width
(m) |
Height
(mm) |
Depth
(mm) |
Filtration Area
(m2) |
Nominal Air Flow
(m3/h) |
Initial Pressure Drop
(± 10% Pa) |
| VC-AC-287-592 | F7 | epm2,5 65% | 287 | 592 | 292 | 1700 | 750 | 100 |
| VC-AC-490-592 | F7 | ePM2,5 65% | 490 | 592 | 292 | 2800 | 1500 | 100 |
| VC-AC-592-592 | F7 | ePM2,5 65% | 592 | 592 | 292 | 4500 | 2480 | 100 |

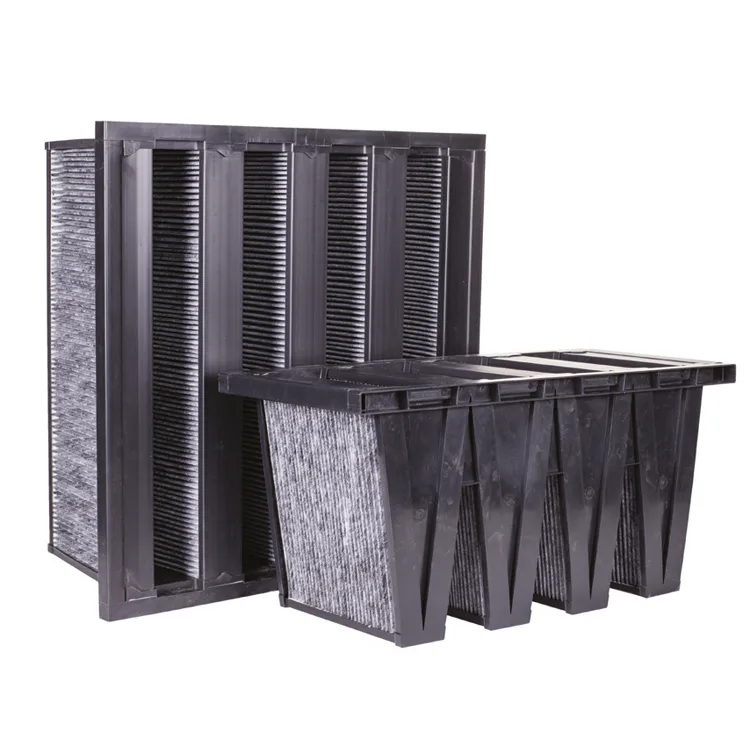

Safe Air Activated Carbon Compact Filters offer high-efficiency gas and odor removal with a large surface area designed for industrial and commercial use. These filters, ideal for spaces like kitchens, industrial plants, and labs, effectively capture harmful gases and odors using powerful activated carbon. The compact design ensures efficient filtration even in limited spaces, supporting energy and space savings.
Safe Air Activated Carbon Compact Filters are commonly used in industrial facilities, commercial kitchens, paint booths, and offices, where odor and harmful gas removal are essential.
With minimal maintenance, these filters provide long-term use, requiring replacement based on capacity.
